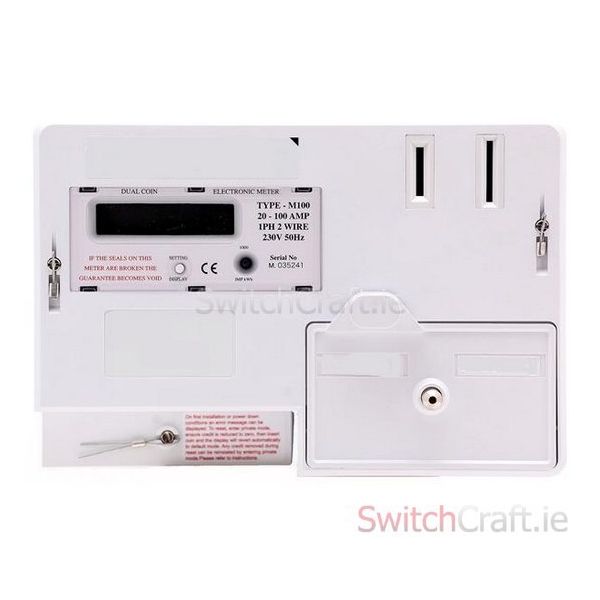

The meter has a compact design and a LCD display for easy user interaction through the use of two buttons and a scanner. There is also an options for 1 minute interval readings up to 99hour 99 minute; allowing much flexibility for the end user.
Specification
Electrical
Voltage: Nominal voltage 220V—240V
Maximum 276V
Voltage withstand 415V (maximum 6 hours)
Frequency Nominal frequency 50Hz Frequency variation ± 5%
Current: 20—100A (Amps)
Maximum (Imax) 100A (140% over current)
Metrology
Accuracy Active energy Class B (1%), to EN 50470 1-3
