100A Single Phase KWH Meter
120A 3 Phase KWH Meter

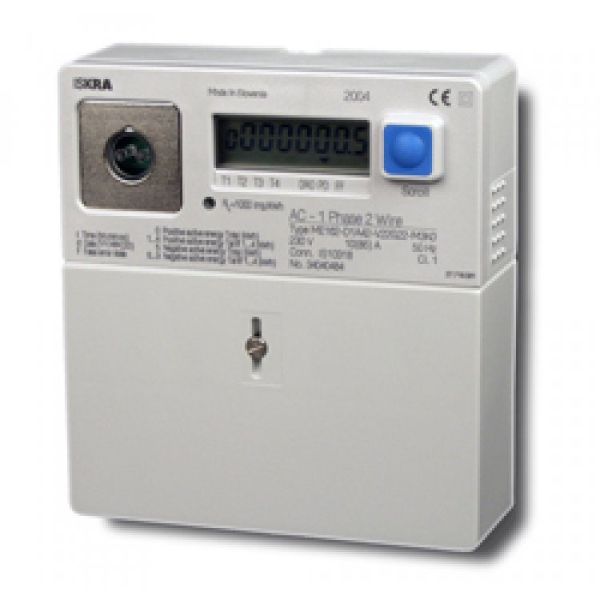

Dual Rate Single Phase KWH Meter
• Approved to BS EN61036: 1996, Class 1 & 2.
• Direct connection 20 – 100A, 220V – 240V.
• Pulsed Output (optional).
• Active & Reactive Energy Measurement.
• Fraud Protection.
• Reverse energy detection / export.
• Multirate c\w Internal Time switch (max 4 tariffs).
• Compact Design.
• Optical Port for Programming and Data Acquisition.
- Voltage : 230V
- Load ranges: 5-100A
- Accuracy class : 2 or 1
- Frequency : 50Hz or 60Hz
- Option: 2 S0 or OPTOMOS pulse outputs
- Standards : IEC 62053-21 (IEC 61036 or BS EN 61036), DIN 43857, BS 7856,IEC 62056-21 (IEC 61107)
