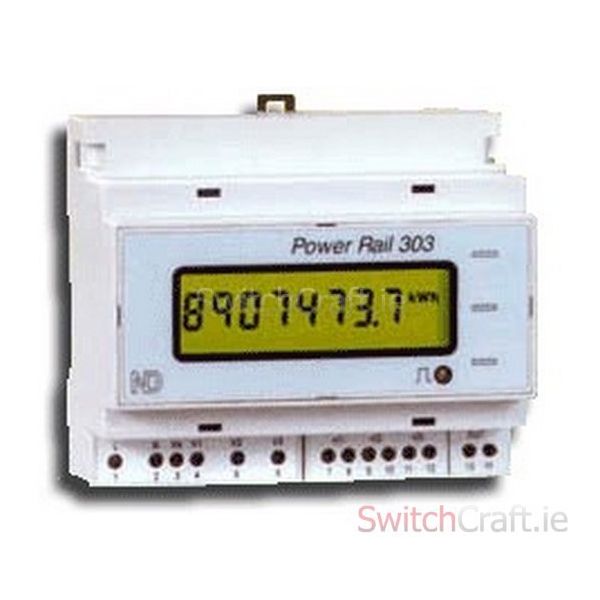

• kWh Meter with Pulse Output
• 3ph 3/4wire 400/230V 45-65Hz
• 5A-0.1VA CTs 230Vac powered
• Cost effective
• Class1 EN60136
• DIN Rail Mounting
• 8 digit kWh display
• Resettable and non-resettable kWh registers
• kW display for test and commissioning
Voltage: 400/230V. 3 Phase 3 or 4 Wire. 110/63V & 208/120V opt.
Current: 5A from external CTs. 1A optional. Fully isolated
Measurement Range: 50% to 120% (voltage) 0.5% to 120% (curr)
Freq Range: Fund. 45 to 65Hz, Harmonics up to 40th harmonic
Voltage Burden: <0.1VA per phase
Current Burden: <0.1VA per phase
Overload Voltage: x2 for 2 seconds max.
Overload Current: x40 for 1 second max.
AUXILIARY SUPPLY
Standard: 230V 50/60 Hz +-15%
Brand | General |
---|
