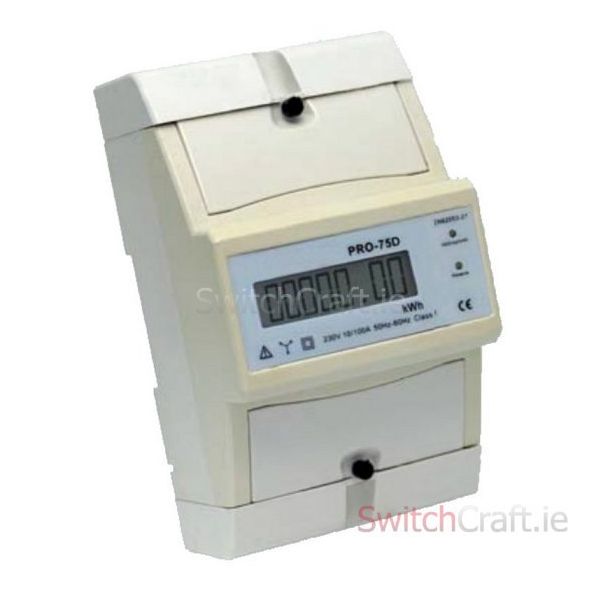

Din Rail Mounted Single Phase KWH Meter 100A 4Mod.

€66.50 €81.80
DIN rail single phase two wire energy meter, with only extreme high components.
• 100 amp Direct Connected
• 5 Years Guarantee
• LCD or Mechanical Display
• Pulsed Output
• Class 1
Availability: In stock
SKU
PRO75


Voltage:                                 230V AC
Frequency:                             50Hz / 60Hz (+-10%)
Current:                                 10(100)A
Power consumption:               < 2W / 10VA
AC Voltage withstand:             2KV – 1 minute
Impulse voltage withstand:     6KV – 1,2μS waveform
Output:                                 SO according to DIN43864
Temperature range:               -20°C ~ +55°C
Case:                                    75mm DIN rail mounted
Dimensions :                        76 x 100 x 65mm (w x h x d)
Accuracy Class:                     1

More Information
Brand General
